Large Format Pharmaceutical Inserts Folder Machine with Cross Knife Folder Leaflets Paper Folding Machine

Name: Large Format Pharmaceutical Inserts Folder Machine with Cross Knife Folder Leaflets Paper Folding Machine
Brand: AOQI
Price: 1 USD

Brand Name : AOQI

Model Number : 600TS-16K+1D

Certification : CE　certificate

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T

Supply Ability : 700pcs/year

Delivery Time : 15-25days

Packaging Details : wooden box

Max.sheet size : 600*1000mm

Min.sheet size : 70*120mm

Speed : 220m/min

Paper weight : 30-250g

Control Panel : Imported Touch Screen

Driving Way : Belt Driving

Additional Features : Batch Counting, Camera Inspection System, Jam Detection

Optional unit : Pressing unit、Parallel knife、Labeling machine、vertical stacker

Folding Types : Single Fold, Double Fold, Letter Fold, Accordion Fold, Gate Fold,parallel Fold

Packing type : Wooden box

Condition : New

Contact Now

Large Format Pharmaceutical Inserts Folder Machine with Cross Knife Folder Leaflets Paper Folding Machine

Product Description:

The Large Format Pharmaceutical Inserts Folder Machine with Cross Knife Folder is designed for precise, high-speed folding of large-format leaflets. It supports various fold types such as Z-fold and cross-fold, making it ideal for pharmaceutical and medical device industries. Equipped with intelligent control and fault detection, it handles different paper weights with stability and accuracy. This machine meets GMP standards, supports customization, and significantly improves packaging efficiency for inserts with compact size and high information density.

Technical Parameters:

Max.infeed size	600*1000mm
Min.infeed size	70*140mm
Paper weight	30-250g
Max.speed of folding roller	220m/min
Input power	380V

Features:

1,All the gears and the bearings are imported. Automatic oil supply for the bearing and also for the second station.

2,Equipped with Ultrasonic double-sheet Detection to Identify two or more pieces or sheets inadvertently adhering together.

3,Touch screen Control panel --proprietary software with Independent intellectual property rights for pharmaceutical outsert system.

4,A simple turn of the adjustment dial ;easy to adjust the size,the digital displays are imported from Germany SIKO.

5,Silent Belt Driving,use double bearing structure,driving is much more stable, lower noise.

Large Format Pharmaceutical Inserts Folder Machine with Cross Knife Folder Leaflets Paper Folding Machine

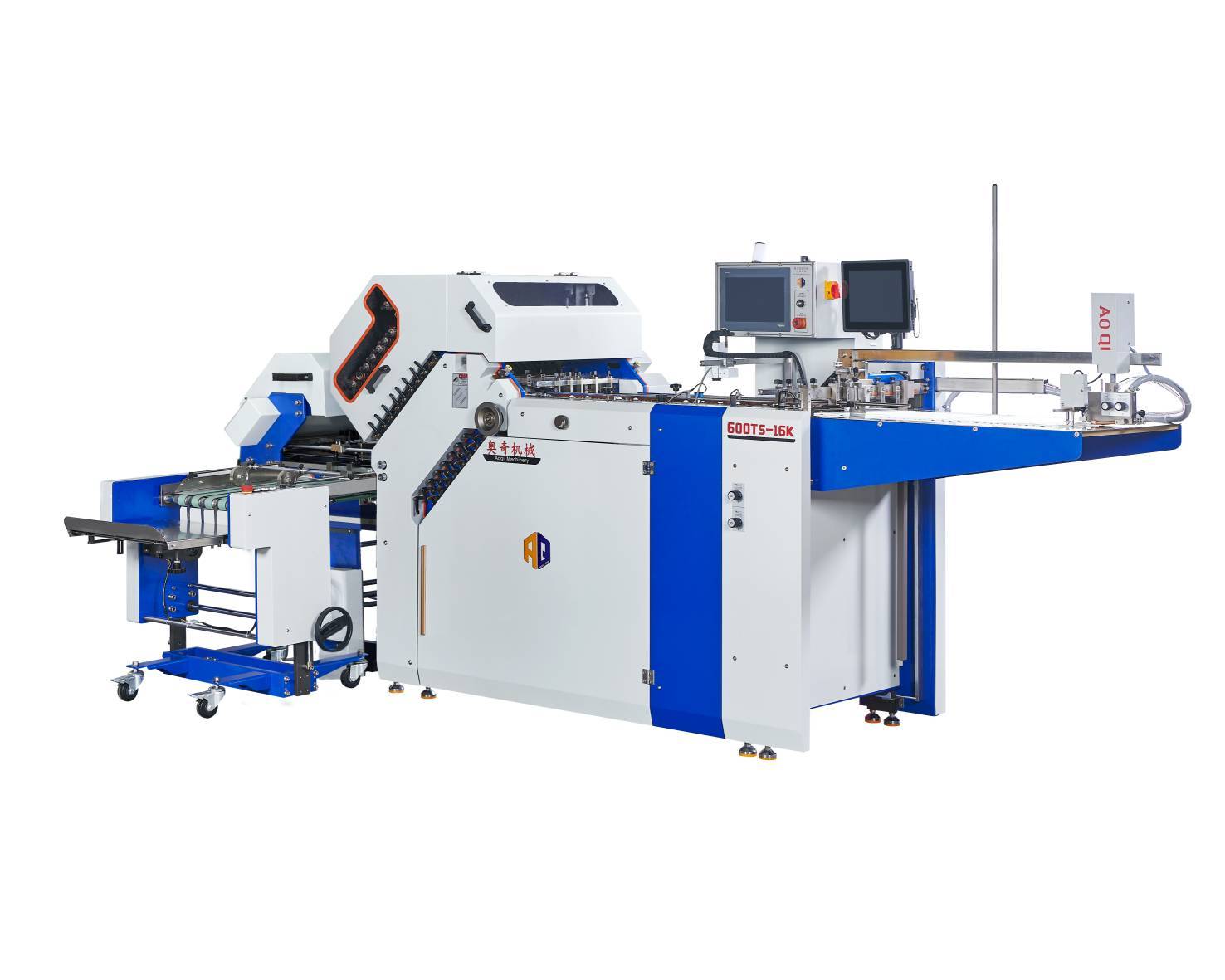

Large Format Pharmaceutical Inserts Folder Machine with Cross Knife Folder Leaflets Paper Folding Machine Images
